MAX II and MAX IV shift improvement kits:

This is just a small sample of the ATV items in which are available.

Call me for additional parts

812-944-1643

Shift Improvement kits, MAX II and MAX IV

Replace your stock MAX shift linkage with this spring
loaded kit, Makes trans MUCH easier to shift with less
possible damage to shift parts.

Kit comes with everything needed to do one machine, Please note there
are different kits ot fit various MAX II and MAX IV machines.

You are welcome to call and order or order directly from our 6x6parts.com
shopping cart linked HERE

How does our kit work?

MAX machines since the beginning have been plagued by very poor transmission shifting.
The reasons are long weak shift linkage rods with poor joints, this allows the system to
flex and deliver a lot of loose action.

Also the T-20 is best described as two transmissions in one case,
when one tries to shift a T-20 one is actually shifting two independent transmissions
in which both require the inside shift gears to be in perfect alignment in order to shift. This problem
is further compounded by the fact many machines have their idle speed set too high or the belt too
tight. This causes the transmission to turn too fast while trying to shift.
All this spells poor shifting.

Our E-Z Shift kit allows somewhat independent shifting of each side of the transmission, one side shifts first then the other side shifts upon slight rotation of the transmission. This done by the spring loaded brass pivots allowing each transmission side to align, therefore shifting on rotation.
Our E-Z Shift kit replaces the last shifting clevis, the last link that connects to the diamond shaped T-20 shifters.

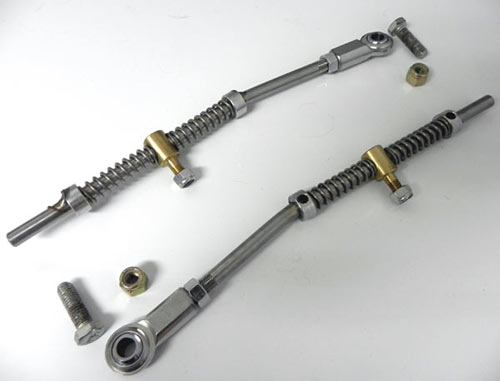

The E-Z shift kit feature the main rod, springs built out of stainless steel and the pivot machined out of brass to slow rusting down. Also includes a Heim-Joint to take some looseness out of the complete shift linkage. Kits come complete with all attachment hardware as shown on photo.

Operation of E-Z shift kit: While engine idling move shifter to forward or reverse and hold shifter, slightly increase RPM's until transmission shifts. The springs allows transmission to shift independently as internal gears align.
